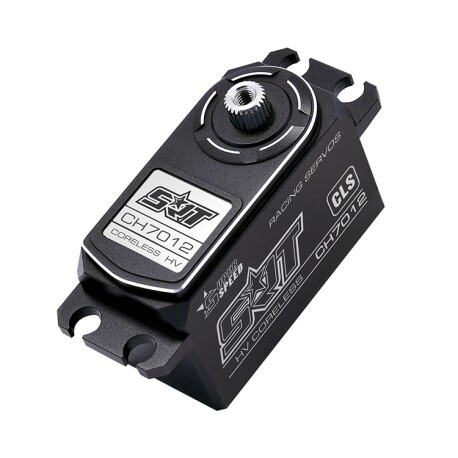

SRT CH7012 HV CL Low-Profile Servo 9KG - 0.07 sec at 6v - Metal Case

KEY FEATURES

Ideal for 1/10 scale applications, as well as large scale airplanes and jets

incredible efficiency and low power consumption

Titanium & Alu gears for precision and durability

Standard dimension make it perfect for vehicles that can benefit from a high quality servo

CNC Machined aluminum case for exceptional cooling

HD 4096 Resolution

2 μsec Dead Band

Superior Holding Torque

1-Year Limited Warranty



PRODUCT SPECIFICATIONS

Type: Digital

Bearing: Dual

Motor Type: Coreless

Gear Type: Metal

Gear Material: Titanium & Alu

control system: pulse width control

working frequence: 1520μs / 330hz

operating voltage: dc6.0-8.4v

operating temperature range: -10 to + 60 degree

operating speed (6.0v): 0.07 sec/60 degrees at no load

operating speed (7.4v): 0.06 sec/60 degrees at no load

operating speed (8.4v): 0.057 sec/60 degrees at no load

stall torque (6.0v): 9.0kg.cm (124.9 oz/in)

stall torque (7.4v): 11.0kg.cm (152.7 oz/in)

stall torque (8.4v): 12.0kg.cm (166.6 oz/in)

potentiometer drive: direct drive

dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in

weight: 52.0g (1.83 oz)

connector wire length: jr 180 mm
