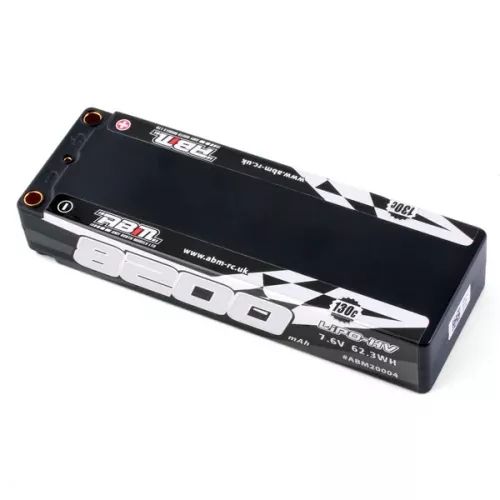

ABM LiPo Race Battery - 8200mAh 7.6v 130C 5mm - BRCA Approved

Proudly BRCA approved, the Amy Booth Models (ABM) LiPo Race Battery delivers dependable performance for competitive RC car racing. This full-size stick pack pairs a nominal 7.6V with a generous 8200mAh class capacity and a high 130C pulse rating for strong bursts, while maintaining stability across a race distance. The robust ABS+PC hard case with sonic-welded sealing enhances durability, and low internal impedance (0.9–1.3 mΩ per cell) supports efficient power delivery.

Designed with race-focused connectivity, the pack features 5mm tube terminals for the main discharge and a 2mm tube balance port for precise cell management. At approximately 305g and measuring 138.6 x 46.7 x 25mm, it suits chassis layouts that accept a full-size stick footprint. Follow the manufacturer’s recommended CC/CV charging method using a high-quality LiPo charger, with the specified cut-off values for optimal performance and longevity.

Features

Configuration: Full Size Stick Style

Battery pack weight: 305 ± 12.2g

Length: 138.6mm +0/-1mm

Width: 46.7mm +0/-1mm

Thickness: 25mm +0/-1mm

Casing material: ABS+PC

Casing nominal thickness: 1.0mm

Casing sealing: Sonic-welding

Discharge point: dia. 5mm tubes (positive / negative terminals)

Charging port: dia. 2mm tube balance

Ratings

Nominal Voltage: 7.6V

Nominal Capacity: 8000-8400mAh

Nominal Impedance: .9-1.3 mOhm per cell

Charging method: CC/CV mode (high quality LiPo chargers only)

Charge cutoff voltage: 8.40V ±0,05V

Charging current: 8.2 amps (typical)

2C charging possible, with special attention for accurate cut off

Discharge cutoff voltage: 6.2V ±0,05V

Discharge continuous: 65c

Discharge pulse (max): 130c (less than 6sec. for each pulse)

Discharge Temp range: -20~+60 deg-C

Charging Temp range: 0~ +45 deg-C

Storage Temperature: -20~+45 deg-C

Storage Humidity: 65 ±20% RH
