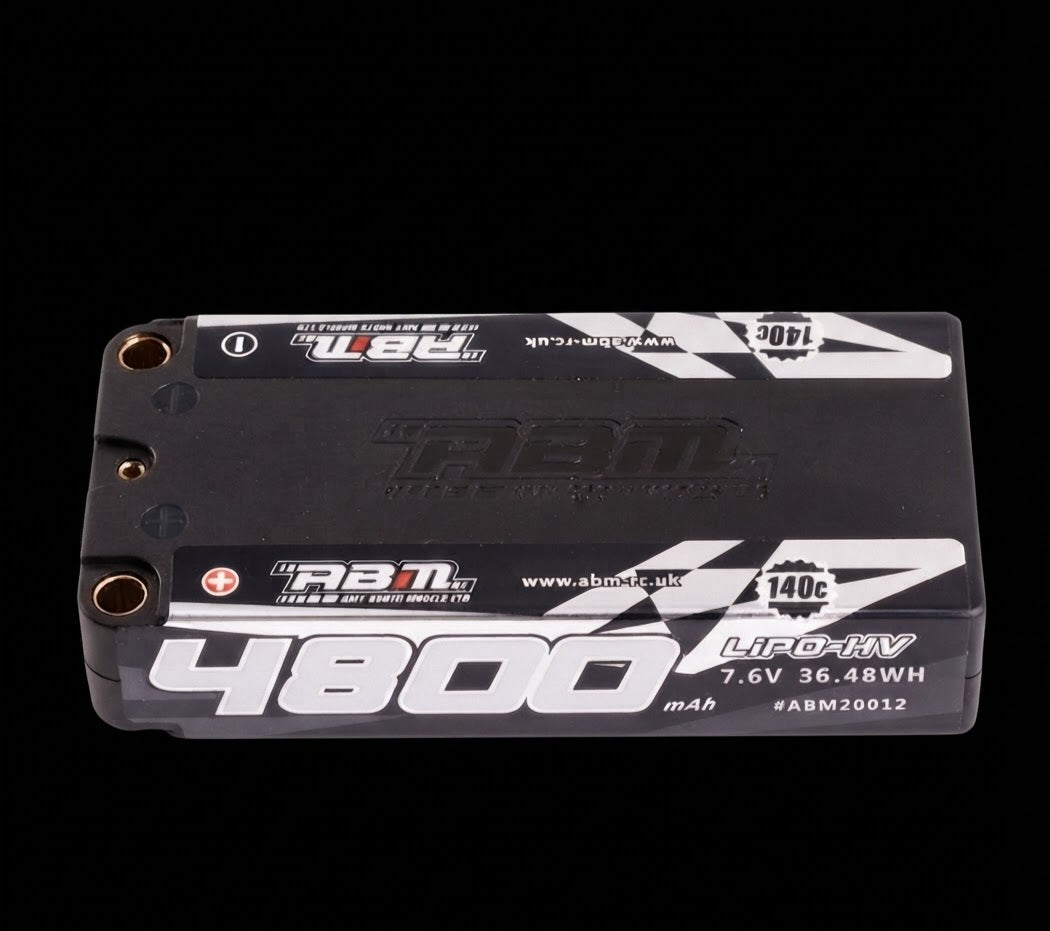

ABM20012 - ABM LIPO RACING BATTERY 4800 7.6V 140C - 5mm - SHORTY - BRCA|EFRA APPROVED

ABM 4800 LCG Shorty 7.6v Lipo-HV 140c 5mm connectors BRCA and EFRA legal for 2025 onwards

Dimension and Visual

Configuration: Shorty LCG Style

Battery pack weight: 180 ± 7.2

Length: 96.4mm +0/-1mm

Width: 46.5mm +0/-1mm

Thickness: 20mm +0/-1mm

Casing material: ABS+PC

Casing nominal thickness: 1.0mm

Casing sealing: Sonic-welding

Discharge point: dia. 5mm tubes (positive / negative terminals)

Charging port: dia. 2mm tube balance

Nominal Voltage: 7.6V

Nominal Capacity: 4600mAh-4900mAh

Nominal Impedance: .9-1.3 mOhm per cell

Charging method: CC/CV mode (high quality LiPo chargers only)

Charge cutoff voltage: 8.40V ±0,05V

Charging current: 4.8 amps(typical)

2C charging possible, with special attention for accurate cutoff

Discharge cutoff voltage: 6.2V ±0,05V

Discharge continuous: 70c

Discharge pulse (max): 140c (less than 6sec. for each pulse)

Discharge Temp range: -20~+60 deg-C

Charging Temp range: 0~ +45 deg-C
